Mil-ST Connectors - MIL-C-83522 (Mill Spec C-83522 info)

Cables Plus USA offers ruggedized (rugged) military fiber optic ST connectors for fixed and deployable communication systems. These connectors meet the requirements of MIL-C-83522. Our connectors are designed to provide the best possible optical performance in applications with severe environmental conditions.

The M83522 connector features a higher spring force than commercial ST connectors, allowing it to meet the shock and vibration requirements of MIL-C-83522. Stainless steel
construction provides excellent mechanical strength and superior corrosion resistance.

Read our M83522 MIL-ST Connectors and Adapters specification here.

Parameter Specification

Insertion Loss < 0.75 dB (MIL-C-83522 allows for <1.0 dB)
Return Loss > 30 dB (multimode)
Tensile Loading > 230 N
Mating Durability > 500 cycles
Impact 8 times, 1.5 meters
Dust MIL-STD-202, Method 110
Thermal Shock MIL-STD-1678, Method 4020
Vibration MIL-STD-1344, Method 2005
Temperature Humidity DOD-STD-1678, Method 4030
Salt Spray MIL-STD-1344, Method 1001
Flammability MIL-STD-1344, Method 1012
Temperature Cycling -55oC to 125oC Op, -65oC to +200oC Non-Op
Shock MIL-STD-901D, Grade A, Type A, Class I
Fungus Resistant MIL-STD-810, Method 508

M83522-17 Mil-Spec ST Connector Dust Cap
M83522-17 Mil-Spec ST Connector Dust Cap

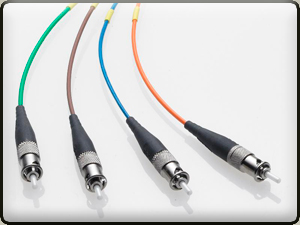

M83522-17 Mil Spec ST Connectors
M83522-17 Mil Spec ST Connectors

M83522-16 Military ST Connector with Boot Removed
M83522-16 Military ST Connector with Boot Removed

M83522-17 Mililtary ST Adapter Coupler
M83522-17 Mililtary ST Adapter Coupler

M83522-16 Military ST Connector with Dust Cap Close Up
M83522-16 Military ST Connector with Dust Cap
